Lenovo ThinkSystem ST50 V2 server 1.92 TB Tower Intel Xeon E E-2324G 3.1 GHz 16 GB DDR4-SDRAM 500 W
SKU
7D8JA043EA
Login for pricing
Out Of Stock - Contact your account manager
Intel Xeon E-2324G (8MB Cache, 3.1GHz), 16GB DDR4-SDRAM, 2x 960GB SSD, Intel UHD Graphics P750, LAN (Intel I219-LM), 500W, No OS
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
- Three PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance
- Support for a NVMe M.2 drive for OS boot operations
- Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
- The use of SSDs instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance
Category: Servers
| Processor family | Intel Xeon E |
|---|---|
| Chassis type | Tower |
| Internal memory type | DDR4-SDRAM |
| Redundant power supply (RPS) support | No |
| SKU | 7D8JA043EA |
| EAN | 5054444562391 |
| Manufacturer | Lenovo |
| Availability | In Stock |
| Product Family | ThinkSystem |
| PDF URLs |
View PDF |
Flexible
The ThinkSystem ST50 V2 adds value and flexibility for your growing business by providing support for three PCIe slots with support of single NVIDIA GPU, and various high bandwidth network adapters along with an array of compatible storage drives. It can be scaled to fit your growing business, provides high reliability, and uses common components to reduce costs.
Lenovo’s XClarity (USB) provisioning manager enables easy setup and firmware upgrades while Intel Active Management Technology (AMT)saves time and reduces costs by monitoring system health and preventing data disruption.
Energy-efficient, quiet, yet powerful
Designed for discretion the ST50 V2’s compact size, flexible mounting options, and whisper-quiet acoustics allow it to be placed in an office environment without disruption
It´s energy-efficient with a TDP of no more than 95W and supports up to 8 core performance. Providing optimal performance for increased productivity and energy cost-savings.
Powerful and high value
An ideal first server for your growing business, remote/branch office, or retail location, the Lenovo ThinkSystem ST50 V2 enhanced performance increases productivity.
The ThinkSystem ST50 V2 boasts the improved operation of the latest Intel® Xeon® E-2300 processors. With a 17% increase in performance the ThinkSystem ST50 V2 offers professional-level capabilities at an entry-level price-point. High value versus a workstation with the benefits of a resilient server.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

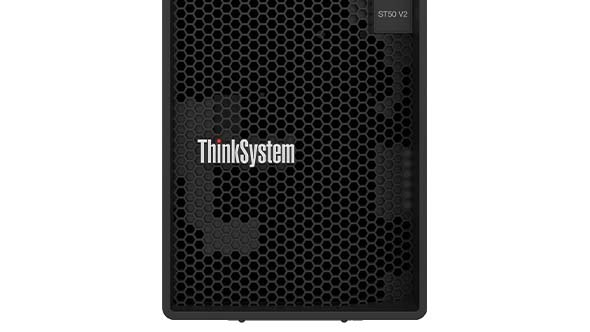

The following figure shows the ThinkSystem ST50 V2.
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.
The following figure shows the ThinkSystem ST50 V2.
| Processor | |
|---|---|
| Processor cache | 8 MB |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Number of processors installed | 1 |
| Processor model | E-2324G |
| Processor cores | 4 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C256 |
| Processor family | Intel Xeon E |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Number of SSDs supported | 2 |
| Hot-swap | No |
| Total storage capacity | 1.92 TB |
| SSD capacity | 960 GB |
| RAID support | Yes |
| Optical drive type | No |
| Number of SSDs installed | 2 |
| Maximum storage capacity | 16 TB |
| SSD size | 3.5" |
| Supported SSD sizes | 2.5", 3.5" |
| Graphics | |
| On-board graphics card model | Intel UHD Graphics P750 |
| On-board graphics card | Yes |
| Network | |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Optical drive | |
| Optical drive type | No |
| Design | |
|---|---|
| Optical drive type | No |
| Chassis type | Tower |
| Product colour | Black |
| Performance | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| Operating system installed | No |
| Processor special features | |
| CPU configuration (max) | 1 |
| Power | |
| Redundant power supply (RPS) support | No |
| Power supply | 500 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating altitude | 0 - 3050 m |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| CPU configuration (max) | 1 |
| Chassis type | Tower |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 170 mm |
| Height | 376 mm |
| Depth | 316 mm |
| Other features | |
| CPU configuration (max) | 1 |
| Warranty period | 3 year(s) |
