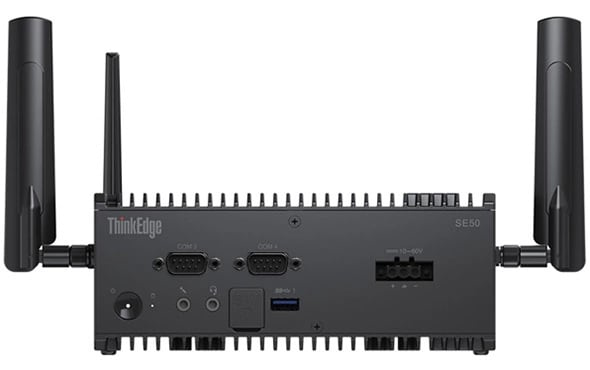

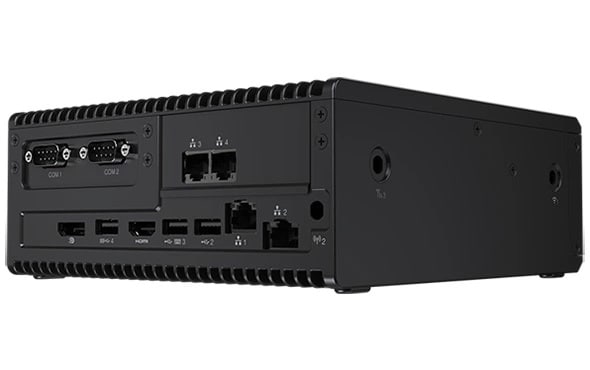

Lenovo ThinkEdge SE50 Intel® Core™ i5 i5-8365UE 16 GB DDR4-SDRAM 512 GB SSD Windows 11 IoT Enterprise Mini PC Black
SKU
11RJ00A6GE
Login for pricing
Out Of Stock - Contact your account manager
Intel Core i5-8365UE (6MB Cache, 1.6GHz), 16GB DDR4-SDRAM, 512GB SSD, Intel UHD Graphics 620, LAN, WLAN, Bluetooth, Windows 11 IoT Enterprise
- Windows 11 IoT Enterprise
- Intel Core i5-8365UE (6MB Cache, 1.6GHz)
- 16GB (2400MHz) DDR4-SDRAM (1 x 16) & 512GB SSD
Category: PCs/Workstations
More power, more versatility
The ThinkEdge SE50 has the power to handle all your real-time data aggregation and processing with higher performance options for superior computational capabilities at the edge — so you can confidently scale your IoT environment as your business grows. The SE50 even doubles as an IoT gateway, with diverse wired and wireless connections built right in.
Bandwidth and storage savings
End users can deploy the ThinkEdge SE50 to aggregate and analyze real-time data from distributed IoT devices. This smart edge device can filter and forward IoT data across the WAN to the cloud or data center.
Built-in reliability and connectivity
True to the Lenovo brand, the fanless ThinkEdge SE50 is rugged, built to withstand industrial environments from 0° to 50°C, and comes with an IP50 rating. Available CAN bus and expandable NICs enable rapid communication between devices at the edge of your business.
Power and reliability at the edge
- Fanless design (0°-50°C operating temperature)
- Diverse I/O port support

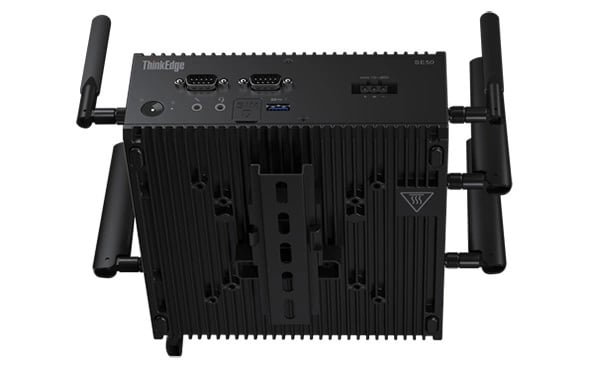

- DIN rail, wall mount support
- High-performing computing and memory
- Microsoft® Azure IoT Edge Certified
- AWS IoT Greengrass Certified
- Fanless design (0°-50°C operating temperature)
- Diverse I/O port support
- DIN rail, wall mount support
- High-performing computing and memory
- Microsoft® Azure IoT Edge Certified
- AWS IoT Greengrass Certified
| Processor | |
|---|---|
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor frequency | 1.6 GHz |
| Processor model | i5-8365UE |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.1 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor family | Intel® Core™ i5 |
| Memory | |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 6 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Technical details | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Motherboard chipset | Intel SoC |
| Compliance certificates | RoHS, WEEE |
| Design | |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Colour name | Black |
| Performance | |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | German |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 IoT Enterprise |
| Power | |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 65 W |
| Operational conditions | |
| Operating altitude | 0 - 3048 m |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 35 °C |
| Non-operating altitude | 0 - 12192 m |
| Certificates | |
| Certification | Low Halogen REACH RoHS compliant TED (ECO-declaration) WEEE |
| Compliance certificates | RoHS, WEEE |
| Weight & dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 72 mm |
| Weight | 2.98 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
