iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
SKU
TF1015MC-B3
Login for pricing
In Stock:
58 available
10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
Category: Signage Displays
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

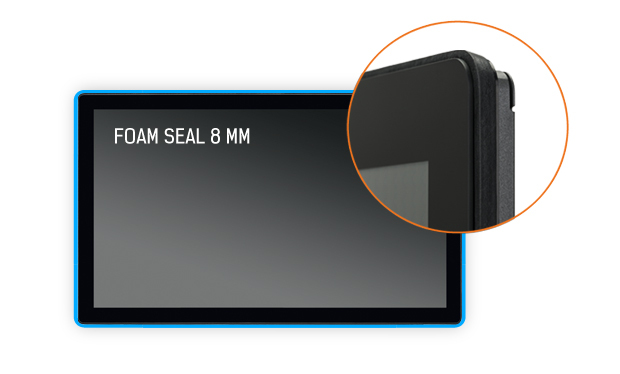

Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

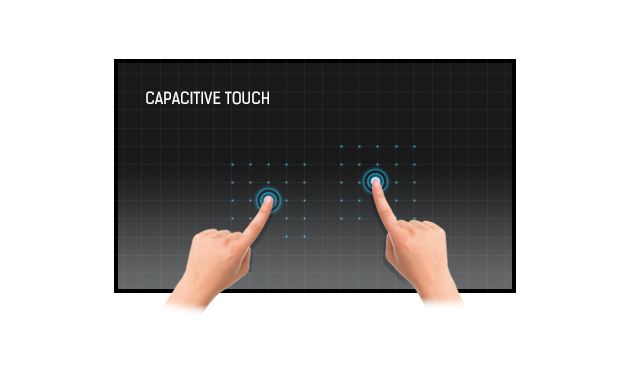

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

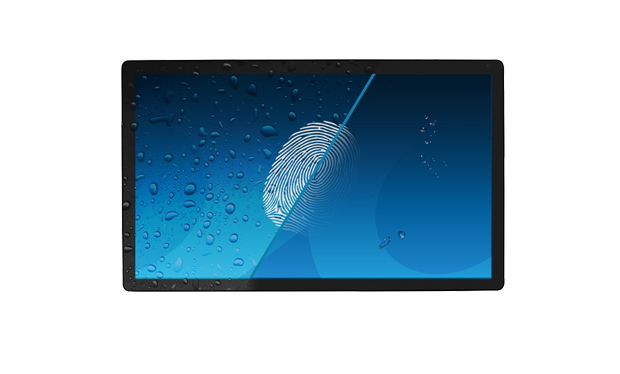

Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

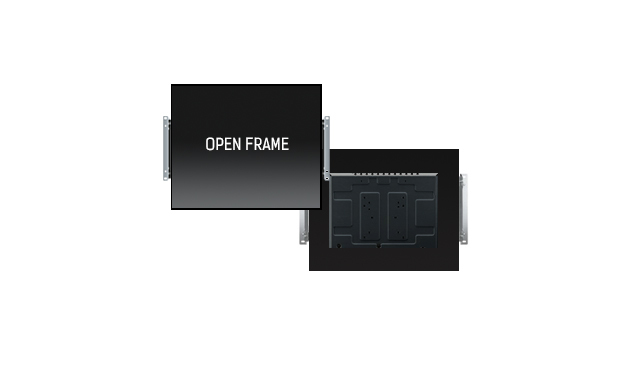

Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 216.96 x 135.6 mm |
| Display technology | LED |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 500 cd/m² |
| HD type | HD |
| Response time | 29 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Display diagonal (metric) | 25.7 cm |
| Native aspect ratio | 16:10 |
| Horizontal scan range | 30 - 49.7 kHz |
| Maximum frame rate | 75 fps |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 7H |
| Glass thickness | 3.3 mm |
| Ports & interfaces | |
| USB port | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Universal |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| HDCP | Yes |
| Plug and Play | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 1.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| Weight & dimensions | |
| Display width | 260.5 mm |
| Display depth | 39.5 mm |
| Display height | 183.5 mm |
| Display weight | 1.4 kg |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 370 mm |
| Package height | 160 mm |
| Package weight | 2.7 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Number of simultaneous touchpoints | 10 |
| Audio out (mini jack) | 1 |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Features | |
| Wall mountable | Yes |
| Other features | |
| Panel type | IPS |
| Number of simultaneous touchpoints | 10 |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| Quick start guide | Yes |
| Plug and Play | Yes |
| Energy efficiency scale | A to G |
